BRYCE KING POST CANTILEVER PAVILION

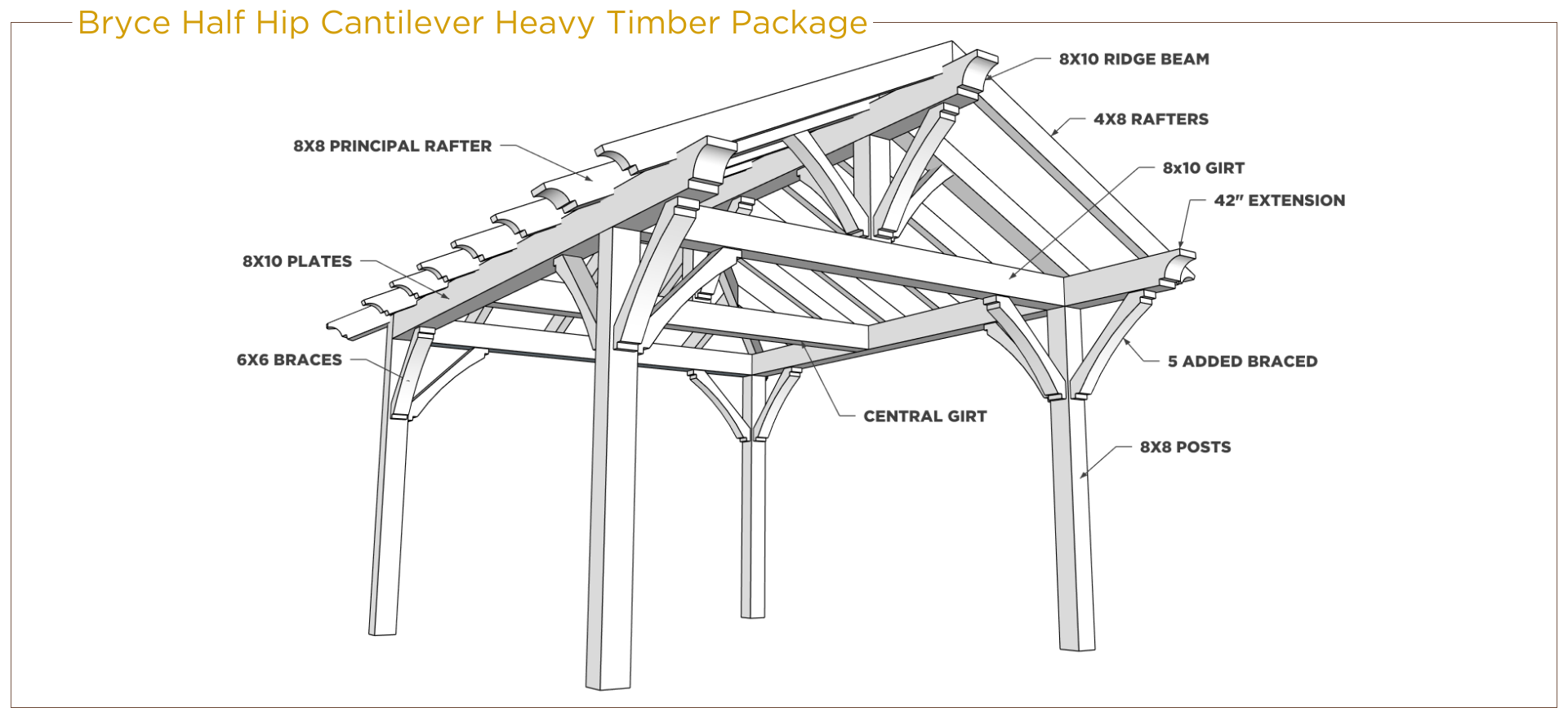

The Cantilever variation of the Bryce Pavilion extends the front overhang from the standard 18″ to 44″, adding both visual impact and expanded covered space. To support this extended projection, the design incorporates three additional knee braces, reinforced cantilever plates and girts, and upgraded principal rafters that match the width of the connecting beam below. This allows for the proper introduction of struts from the king post to the principal rafters, enhancing both the structural integrity and architectural character of the pavilion.

DESIGN & PRICE
LET'S GO

Standard Features

  • Structural Drawings
  • #1 or better Coastal Douglas Fir with finished smooth planned surface
  • Mortise & Tenon and Dovetail joinery
  • 1×6 T&G Douglas Fir Roof Decking
  • 30 year architectural shingles
  • Choice of three brace designs
  • Choice of seven rafter tail designs
  • Choice of nine deep penetrating, proprietary, oil-based, stain colors
  • Post anchor plates, tempered structural fasteners, & oak pegs
  • 5 year limited manufacturer warranty on materials and workmanship
  • Professional delivery and installation with in-house crews



Options

  • Sealed engineered drawings
  • Choice of two different timber size packages
  • Various roof decking options
  • Standing Seam, R panel, and other roofing options
  • Concealed aluminum knife plate post anchors
  • Custom colors
  • Various privacy wall options

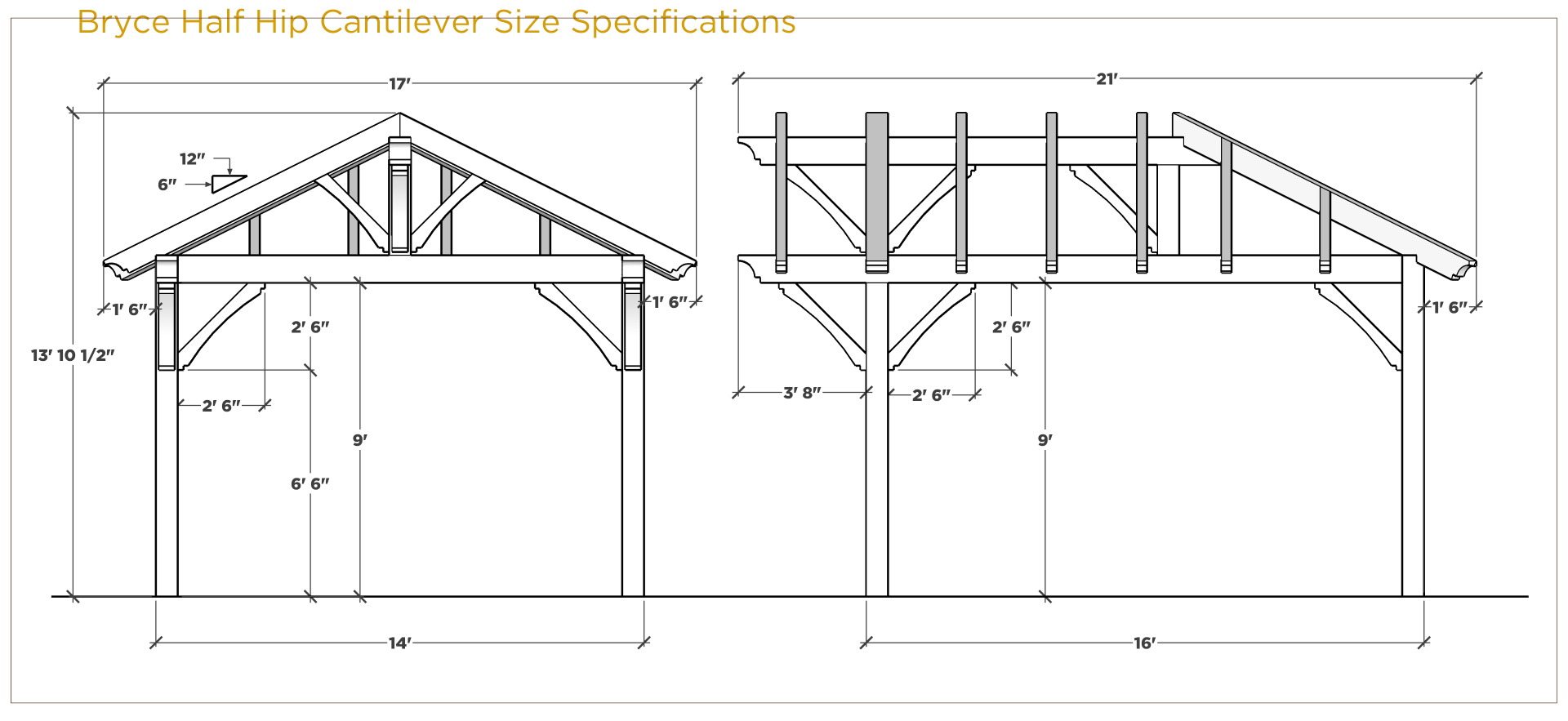

Tech Specs

BROWSE OUR GALLERY

OUR PROCESS

Traditional backyard carpentry just cannot compare to COVER Timberworks. From beginning to end, our process is efficient, easy and clean, and it takes less than half the amount of time to produce and complete one of our beautifully designed, high-quality structures.

Design Decisions
Design Decisions
We make design decisions easy. Use our step-by-step guide or explore our online configurator to create a custom structure tailored to your needs. With clear options and expert support, you'll move from idea to plan with confidence and speed. .
LEARN MORE
Design Decisions
Estimate
Estimate
Once your design decisions are made, we provide a written estimate. Thanks to our modular system and menu-based pricing, this step is fast, transparent, and straightforward.
Estimate
Agreement
Agreement
Once the estimate is approved, we formalize the project with a written agreement that outlines your selections and terms, ensuring clarity before moving forward.
Agreement
Structural Drawings
Structural Drawings
Following receipt of the signed agreement and down payment, we confirm your selections by preparing a set of detailed structural drawings for your review and approval. Sealed engineered plans are also available upon request for an additional cost.
Structural Drawings
Structure Production
Structure Production
Once you approve the drawings, we begin production using our precise CNC saw system in a controlled warehouse environment, keeping noise, mess, and weather delays away from your home.
Structure Production
Sanding & Staining
Sanding & Staining
Next is all the hand work of sanding and staining. All structures come standard with an oil based stain/sealer - our deep penetrating oil based sealer adds beauty and longevity to each of our structures.
COLOR OPTIONS
Sanding & Staining
Installation
Installation
With all the fabrication, sanding, and staining handled off-site, our installation process is streamlined and efficient. In as little as four hours, your structure is fully assembled on-site with minimal disruption to your home and yard.
Installation
Enjoy
Enjoy
With your structure complete, it's time to relax and enjoy your new outdoor space, designed and built to last for years of comfort, style, and functionality.
Enjoy
